Follow-me Robotic Cart Model TBF6

Follow-Me Robotic Cart (500 kg Capacity)

Elevate your material handling operations in factories and warehouses with the Follow-Me Robotic Cart, an intelligent transport solution with modern design, convenience and safety in mind. Equipped with advanced camera and human-detection sensor technology, this smart cart can accurately and autonomously follow the operator. Simply walk ahead, and the cart will maintain a safe following distance. With maximum load capacity of 500 kg, it is ideal for material transport and intralogistics operations in factories, warehouses, and production lines.

Key Features

• Follow-Me System: Automatically detects and follows the operator using intelligent camera and sensor technology for precise movement tracking.
• High Load Capacity (500 kg): Strong and durable structure designed to handle large or heavy materials.
• Automatic Obstacle Detection: Prevents collisions and reduces the risk of accidents during operation.
• Dual Operation Modes:
  • Manual Mode: Controlled via joystick.
  • Follow-Me Mode: Automatically follows the operator.
• High-Performance Battery: Fast charging time (1–1.5 hours) with continuous operation up to 3–4 hours under full load.
• Designed with Safety in Mind: Equipped with emergency stop switch, key switch, and object detection camera.
• Easy Operation & Maintenance: Simple, open-frame structure allows easy access for inspection and maintenance.

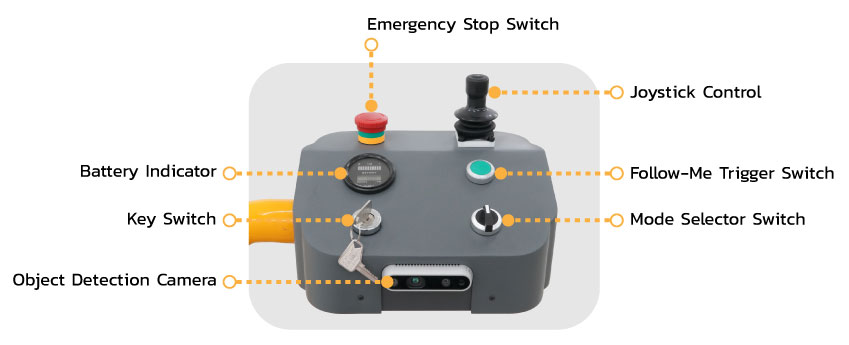

Control Panel Features

• Emergency Stop Switch: Instantly halts all operations in emergency situations.
• Joystick Control: Allows manual cart operation.
• Battery Indicator: Displays remaining battery power.
• Key Switch: Turns the system ON/OFF.
• Object Detection Camera: Detects the operator and obstacles in real time.
• Follow-Me Trigger Switch: Activates the follow-me mode.
• Mode Selector Switch: Switch between Manual and Follow-Me modes.

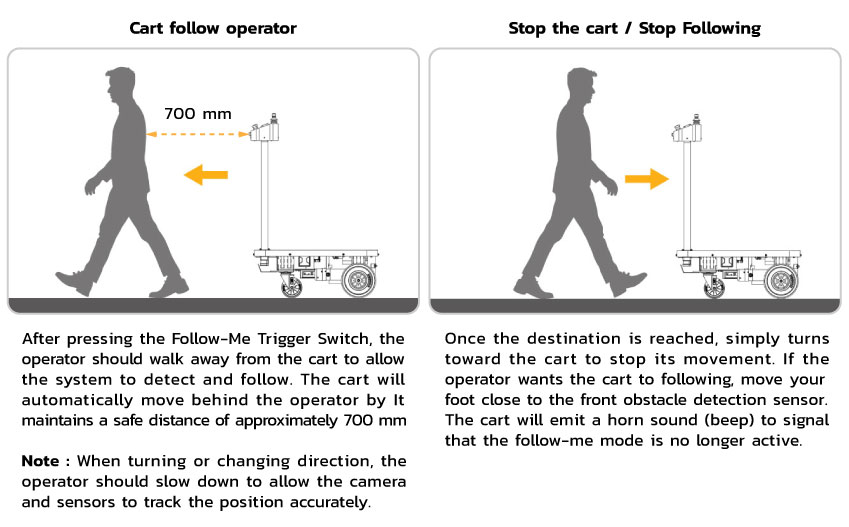

Operation Instructions (Follow-Me Mode)

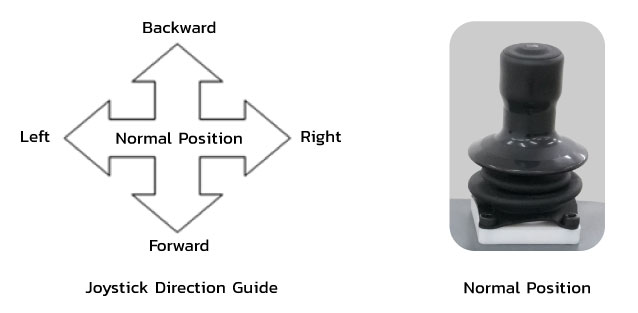

Operation Instructions (Manual Mode)

When operating in environments that are not suitable for automatic following, such as:

• Areas with multiple obstacles
• Narrow spaces
• Crowded zones or heavy pedestrian traffic

Switch the Mode Selector Switch to “Manual”, then use the Joystick Control to manually operate the cart.

Note: The cart will stop immediately when the joystick is released or returned to the neutral (center) position.
