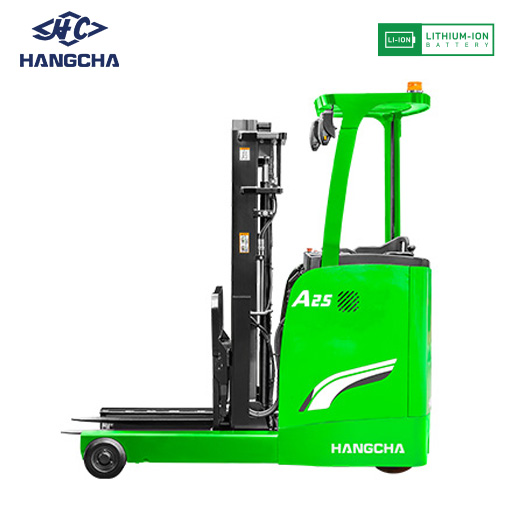

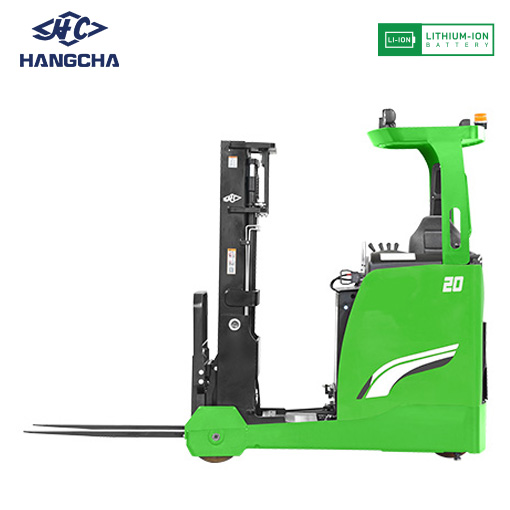

A Series Electric Reach Truck (Stand-on)

A Series Stand-on Reach Truck

Designed to Meet Every Industrial Need – Performance You Can Rely On

The latest A Series Stand-on Electric Reach Truck is specifically engineered to meet the evolving needs of modern industries. Designed with ergonomics in mind, it offers maximum comfort for the operator, wide visibility for confident maneuvering, and a stable, safe, and advanced control system. Every aspect — from structure and performance to cost-efficiency — has been carefully refined to deliver performance on par with leading global brands. Supporting a maximum load capacity of 2.5 tons, it is powered by a maintenance-free lithium iron phosphate (LiFePO4) battery, making it both efficient and environmentally friendly.

Key Features of A Series Stand-on Reach Truck

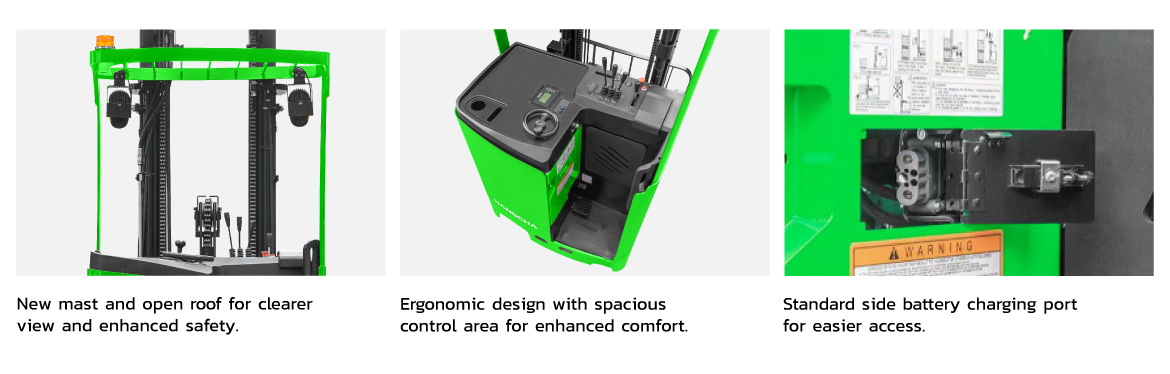

Ergonomic Comfort

• Steering wheel, control levers, and accelerator are optimally positioned for easy operation
• Large molded backrest offers soft support and reduces operator fatigue
• Low-effort hydraulic valve reduces handle resistance by up to 30%
• Low platform height and spacious standing area for easier access

Safety

• Four-point suspension system enhances traction and reduces drive wheel slippage.
• Dual braking system: mechanical disc brakes and regenerative braking for enhanced safety.
• Cornering speed control adjusts automatically based on turning radius for smoother and safer turning.
• If the operator is not in the correct position, drive and lift operations are disabled (except lowering).
• Rearward-sliding side frame helps protect the operator’s back from impact.

Stability & Smart Control

• Controlled via Curtis AC controller with CAN-bus communication for reliable and safe operation.
• Shimadzu valve and gear pump deliver stronger and faster lifting performance.

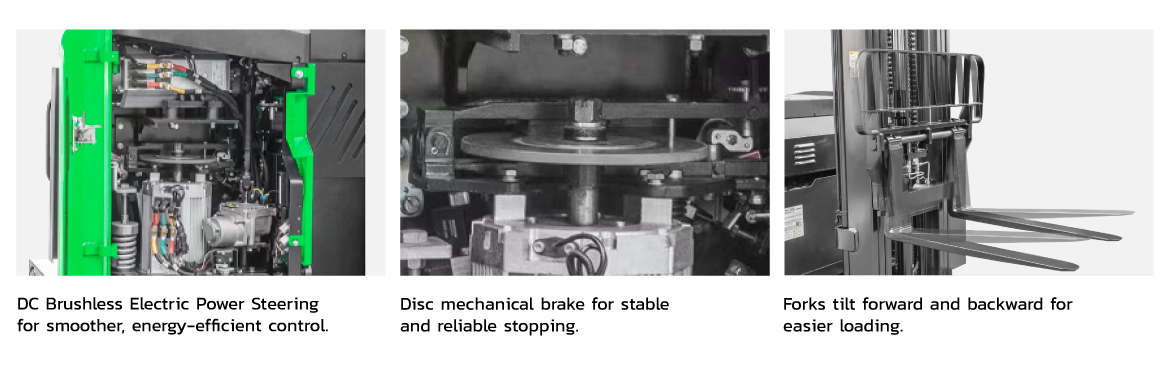

• EPS (Electric Power Steering) with brushless motor ensures precise steering control.
• Suspension system reduces vibration while lifting, turning, and traveling.
• Rear-mounted motor and hydraulic pump optimize the center of gravity for greater stability.
• Automatic speed adjustment based on mast height ensures safe and stable high-level operation.

Ease of Maintenance

• Maintenance-free AC drive and lift motors reduce long-term operating costs.
• Side-extractable battery system enables quick and easy battery replacement.
• Wide-opening service compartment allows easy access to internal components.
• Front-mounted hydraulic valves and control panels offer convenient maintenance access.

Energy Efficiency & High Performance

• The truck frame is 16% lighter, reducing energy consumption while maintaining structural strength.
• Hydraulic system increases lift speed by 23% (unloaded) and 22% (fully loaded).
• High gear ratio drive system with high-RPM, low-torque motor improves energy efficiency.
• Gradeability improved by 48% (unloaded) and 15% (fully loaded).
• Integrated LED lighting (headlights and turn signals) provides high brightness with low power usage.

*For other height options, please contact our sales team.
